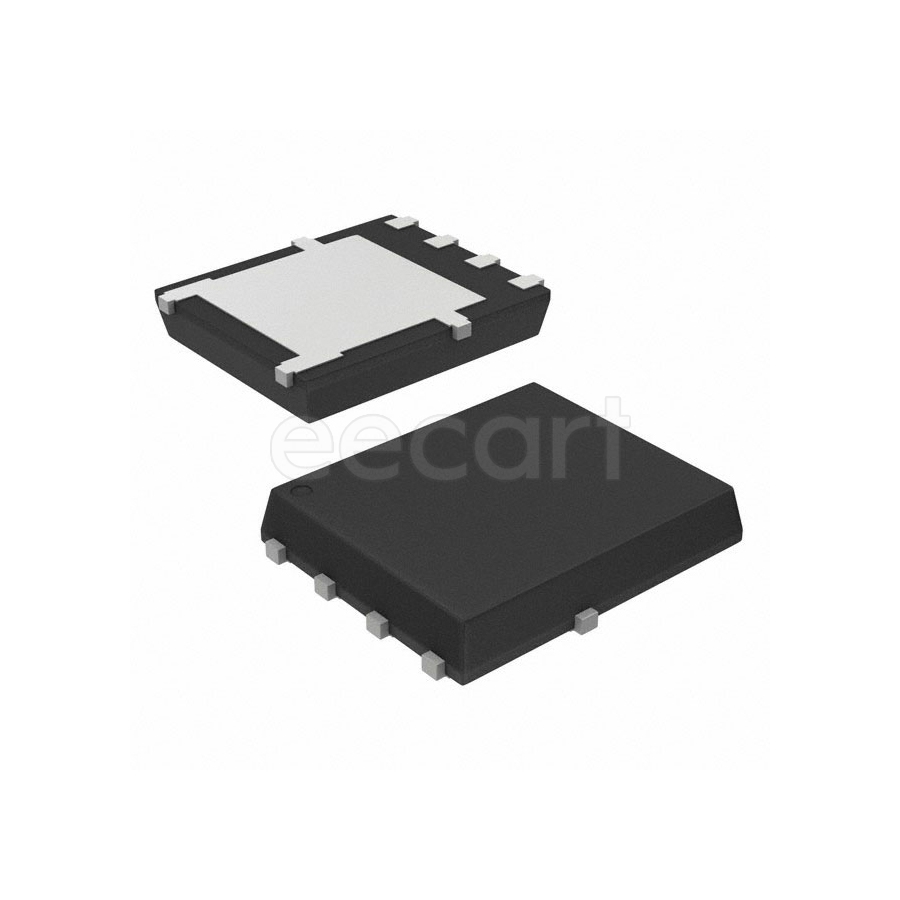

NVMFS4C01NT1G
Manufacturer:
On Semiconductor
Mfr.Part #:
NVMFS4C01NT1G
Datasheet:
Description:
MOSFETs SO-FL-8 SMD/SMT N-Channel number of channels:1 161 W 30 V Continuous Drain Current (ID):370 A 139 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 8 |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Max Power Dissipation | 3.84 W |
| Power Dissipation | 161 W |
| Number of Channels | 1 |
| Input capacitance | 10.144 nF |
| Continuous Drain Current (ID) | 370 A |
| Rds On Max | 900 µΩ |
| Drain to Source Voltage (Vdss) | 30 V |
| Turn-On Delay Time | 29 ns |
| Turn-Off Delay Time | 53 ns |
| Rise Time | 68 ns |
| Gate Charge | 139 nC |
| Drain to Source Resistance | 560 µΩ |
| Gate to Source Voltage (Vgs) | -20 V, 20 V |
| Drain to Source Breakdown Voltage (Vds) | 30 V |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 5 months ago) |
| Gate to Source Threshold Voltage | 1.3 V |
| FET Type(Transistor Polarity) | N-Channel |
Stock: 61
Distributors
pcbx
pcbxUnit Price$2.76509
Ext.Price$2.76509
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.76509 | $2.76509 |
| 10 | $2.63549 | $26.35490 |
| 25 | $2.59133 | $64.78325 |
| 50 | $2.54791 | $127.39550 |
| 100 | $2.50522 | $250.52200 |
| 300 | $2.48741 | $746.22300 |
| 500 | $2.46972 | $1234.86000 |
| 1000 | $2.45255 | $2452.55000 |
